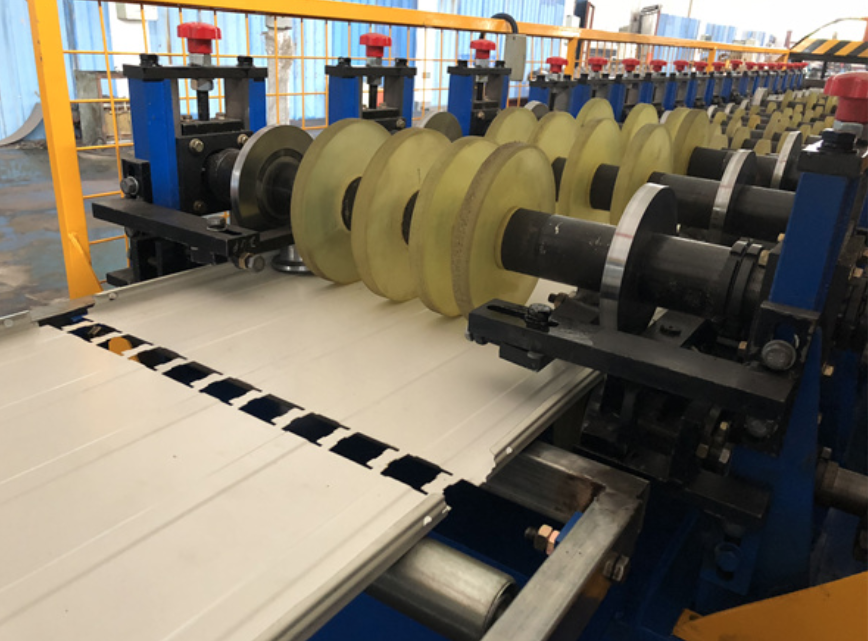

Shelf Panel Roll Forming Machine For Sale UK

Materials to form: According to the customers’ requirement Used for 200mm-600mm (one-sided slide-able, adjustable by electric)
Forming steps: About 18 steps
Material of rollers:GCr15 steel, precision-machined, high frequency quenching HRC58-62, diameter of rollers: ＞￠150
Material of main shaft : 45# high quality steel (diameter＞￠50)
Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13
Cutting: Hydraulic cutting; quenching HRC58-62
Electronic control: PLC control
Dimension of machine: 12000mmX2000mmX900mm
Drive system: Chain drive, 7.5KW main motor power, working speed: 3-15m/min;
Welding structure: material of fixed beam and walking beam: hot-rolled steel, the base and rack are being gantry planer processing after welded, work platform is not allowed stress deformation; main machine table-board’s plainness ＜2mm/1000mm
Parts: Slide: imported from Japan; bearing: Zhonghang Brand of Harbin
Punching: Punching the holes at the press machine before forming the shapes
Bending: Bending after the hydraulic cutting
