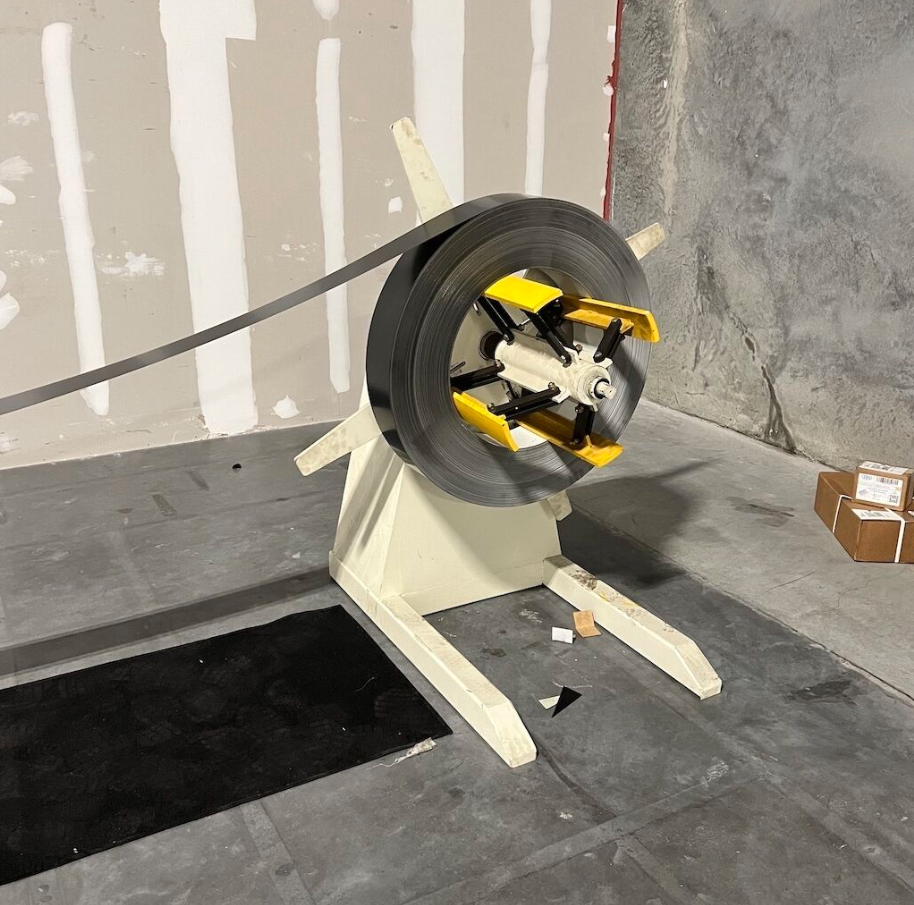

Manual Single-Head Uncoiler (1–3 Ton Capacity)

Price

Contact us for price

Condition

New

Location

UK

The Manual Single-Head Uncoiler is a compact and efficient coil handling solution designed for light to medium-duty applications. Built with a durable manual expansion mandrel and integrated mechanical brake, this uncoiler offers smooth, controlled feeding of steel or aluminium coils up to 3 tons in weight. With a flexible coil width range from 100mm to 1250mm, it is ideal for a wide variety of forming and fabrication tasks, particularly in the roofing, flashing, soffit, and general cladding sectors.

Key Specifications

• Coil Capacity: 1 to 3 tons (1,000 kg – 3,000 kg)

• Coil Width Range: 100 mm to 1250 mm

• Inner Coil Diameter: Adjustable 450 mm – 530 mm

• Outer Coil Diameter: Up to 1500 mm (customisable)

• Expansion Mandrel: Manual operation

• Brake System: Mechanical hand brake included

• Frame Design: Heavy-duty welded steel base

• Power Source: Manual – no electric or hydraulic system required

Machine Features

• Manual Expansion Mandrel: Allows quick and tool-free adjustment to coil inner diameter.

• Precision Braking System: Offers smooth coil tension control during feeding to prevent overspin.

• Wide Coil Range: Suitable for both narrow and wide coil applications, from 100mm up to 1250mm.

• Durable Frame Construction: Provides long-term stability and reliable operation.

• Compact & Mobile Design: Easy to reposition or transport around the workshop or job site.

• Low Maintenance: No motors or hydraulics to service—just mechanical reliability.

Industries Served

This uncoiler is commonly used in the following sectors:

• Metal Roofing & Wall Cladding Fabrication

• Flashing & Trim Production

• Gutter, Soffit & Fascia Manufacturing

• Signage & Light Gauge Fabrication

• General Sheet Metal Workshops

Typical Applications

• Feeding metal coils into roll forming machines

• Manual cutting lines or punch operations

• On-site coil handling for roofing contractors

• Workshop-based pre-fabrication of cladding components

Frequently Asked Questions

Q: Can I use this uncoiler for very narrow coils like 150mm?
A: Yes. This machine is designed to handle coils as narrow as 100mm, making it ideal for soffits, flashings, and trim.

Q: Is it suitable for both aluminium and steel?
A: Absolutely. It can safely handle both materials within the weight and width capacity range.

Q: Does it require electricity or air?
A: No, this is a fully manual machine—ideal for workshops or remote job sites with limited power access.

Q: Can it be paired with a roll forming line?
A: Yes. It's ideal for feeding material into single- or multi-profile roll forming lines, especially for lighter profiles like roofing sheets and flashings.

Q: Is the mandrel adjustable for different coil core sizes?
A: Yes, the expansion range of 450–530mm covers the most common coil inner diameters.

Why Choose This Manual Single-Head Uncoiler?

• Affordable, robust, and simple to use

• Compact design fits in smaller workshops

• Manual operation means fewer breakdowns and no electrical overhead

• Ideal for trim shops, cladding fabricators, and on-site installations

• Backed by professional support across the UK and Ireland
