Manual 5-Ton Decoiler

Price

Contact us for price

Condition

New

Location

UK

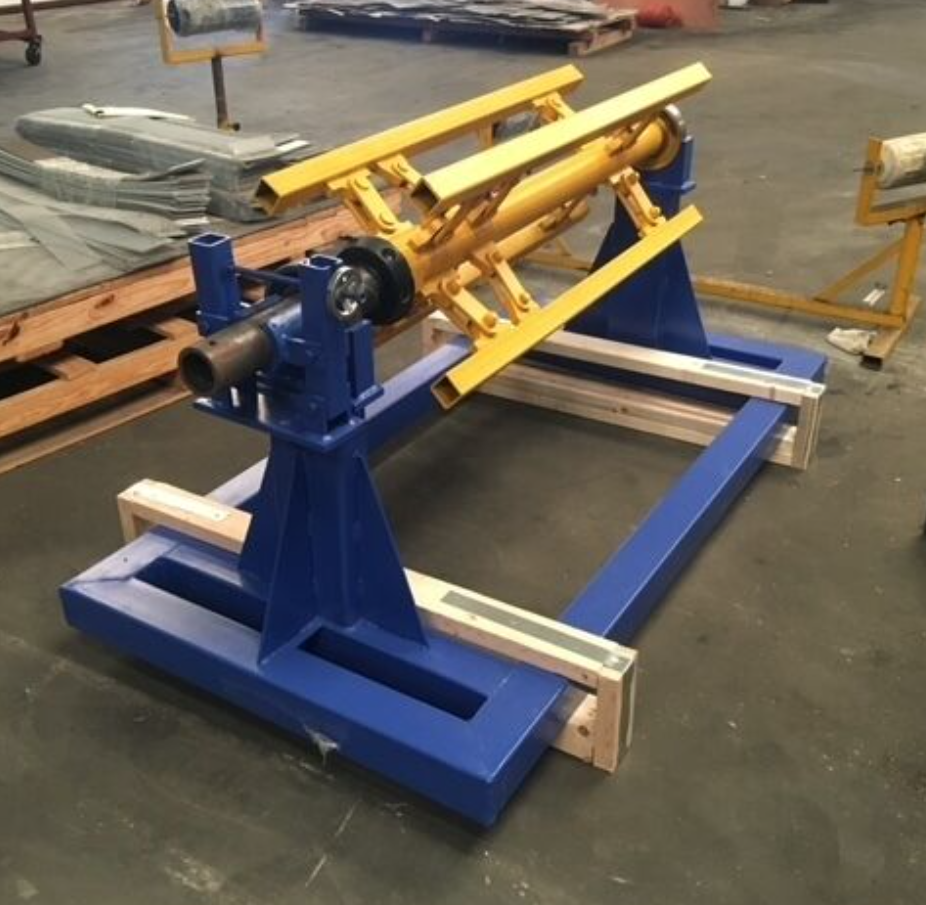

The Manual 5-Ton Decoiler is a robust and reliable coil handling solution designed for small to medium-scale roll forming and metal processing operations. Built for heavy-duty use, it is ideal for uncoiling steel coils up to 5,000 kg in weight, with widths ranging from 1000mm to 1250mm. This decoiler features a manual expansion mandrel, allowing for quick and secure coil loading, and includes a braking system to control rotation during decoiling for added safety and material control.

Key Specifications

• Maximum Coil Capacity: 5,000 kg (5 tons)

• Coil Width Range: 1000 mm – 1250 mm

• Mandrel Type: Manual expansion

• Brake System: Mechanical brake included

• Coil Inner Diameter Range: Typically adjustable to 450 mm – 530 mm

• Coil Outer Diameter: Up to 1500 mm (varies by custom requirement)

• Frame Type: Heavy-duty steel frame

• Mounting: Floor-mounted, freestanding

• Power Source: Manual (no motor required)

Features

• Manual Expansion Mandrel: Easily adjustable to grip the coil's inner diameter securely without power assistance.

• Integrated Brake System: Prevents over-spooling and maintains tension during manual feeding.

• Heavy-Duty Construction: Built to withstand the demands of continuous industrial use.

• Compact Footprint: Space-efficient design ideal for small workshops or on-site forming.

• Low Maintenance: No motor or hydraulics means fewer points of failure and reduced servicing costs.

Industries Served

This decoiler is widely used in:

• Roofing and Cladding Manufacturing

• Steel Building and Construction

• General Sheet Metal Fabrication

• HVAC and Ventilation Duct Production

• Gutter and Flashing Manufacturing

Applications

• Feeding coil material into roll forming lines, slitting machines, or manual cutting lines.

• On-site forming jobs for roofing and wall cladding systems.

• Ideal for job shops and small-scale manufacturers needing flexible coil handling.

Common Questions & Answers

Q: Is power or electricity required to operate this decoiler?
A: No, this is a fully manual machine, which makes it ideal for workshops or sites without access to power.

Q: Can this decoiler handle aluminium coils or only steel?
A: Yes, it can handle both steel and aluminium coils, as long as the weight and width fall within the specified capacity.

Q: Is this suitable for high-speed production lines?
A: This decoiler is designed for manual or semi-automatic operations, so it is better suited for medium or slower-speed lines. For high-speed lines, a powered decoiler is recommended.

Q: Can the width be adjusted to suit narrower coils?
A: While it is optimised for 1000mm–1250mm coils, narrower coils may be accommodated with custom adapters or centering guides.

Q: What maintenance is required?
A: Very minimal. Regular checks for mechanical wear and occasional lubrication of the expansion mandrel and brake system are recommended.

Why Choose This Decoiler?

• Affordable and simple to use

• Ideal for small to medium production environments

• Suitable for new roll forming lines or as an upgrade for manual coil feeding

• No electrical components – ideal for low-maintenance and field operation

For availability, customisation options, or delivery across the UK and Ireland, contact the Machine Matcher team.
