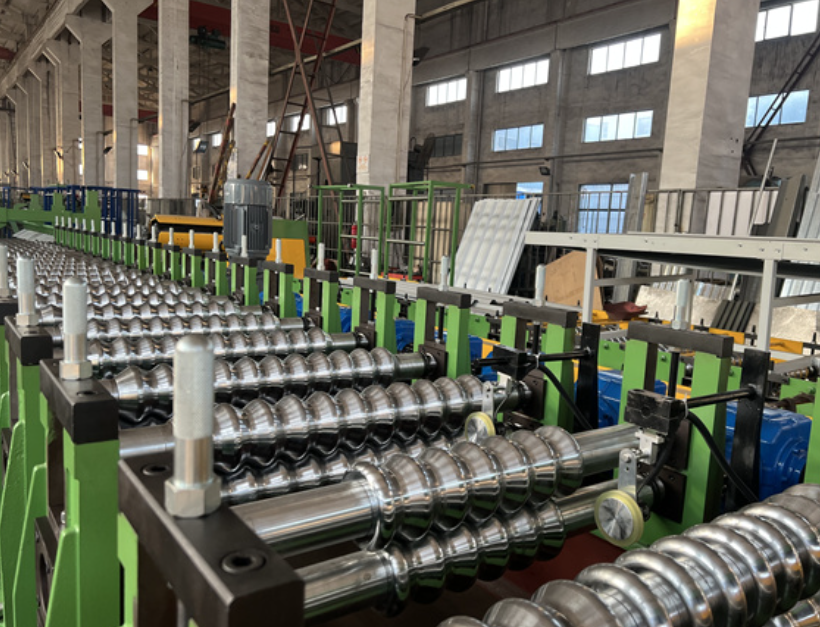

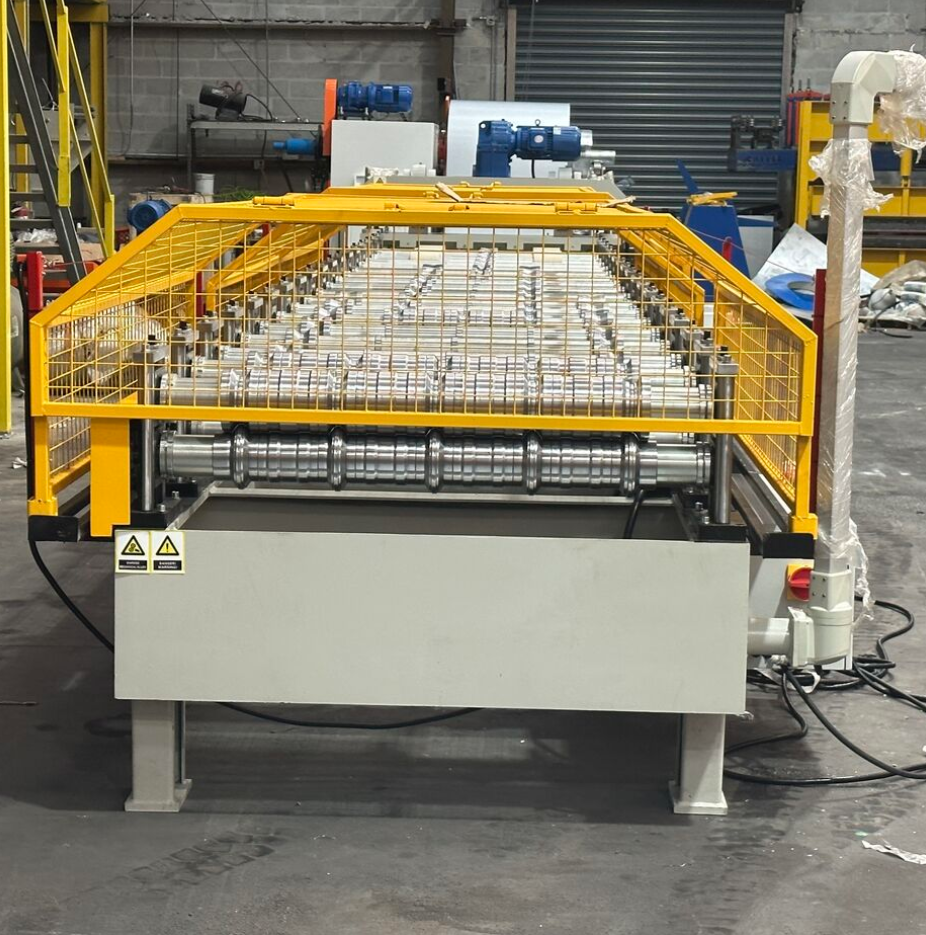

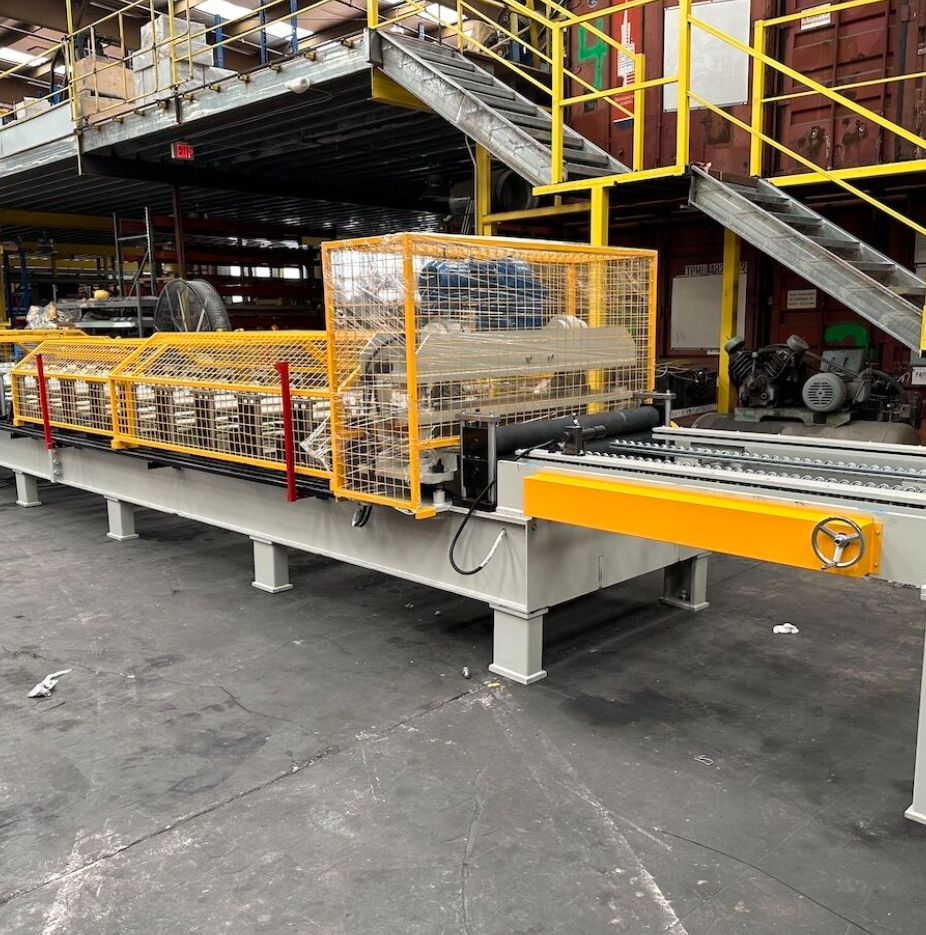

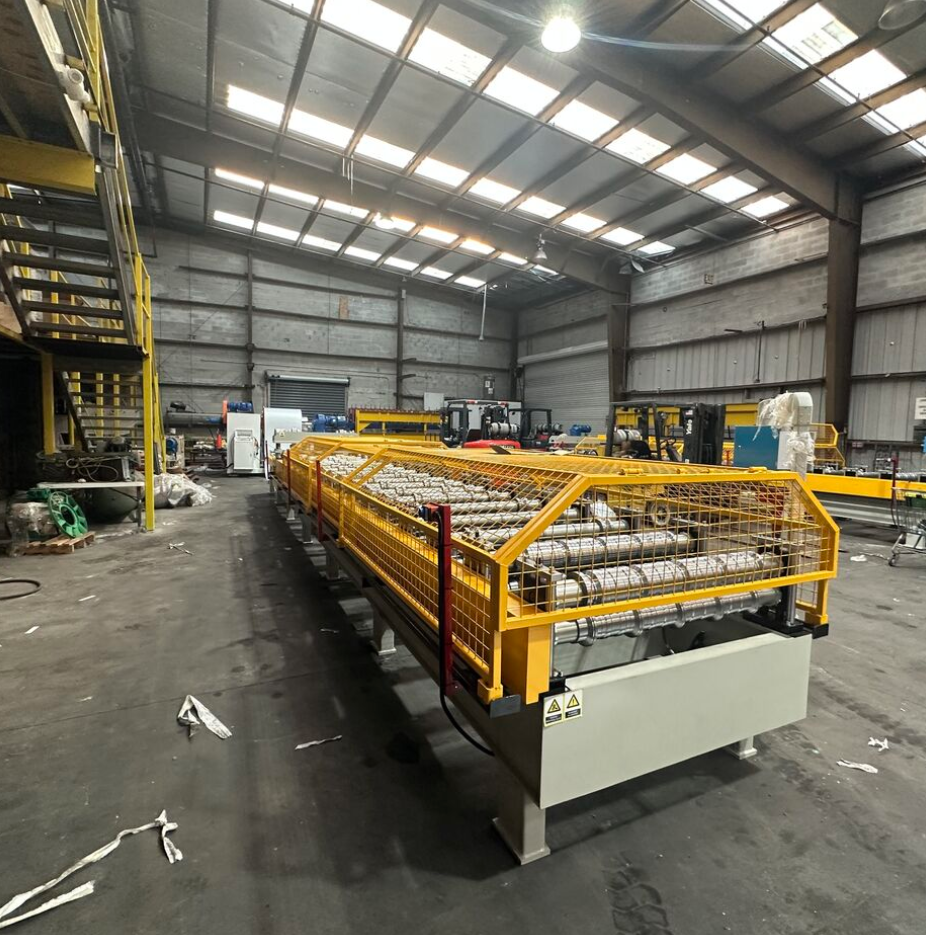

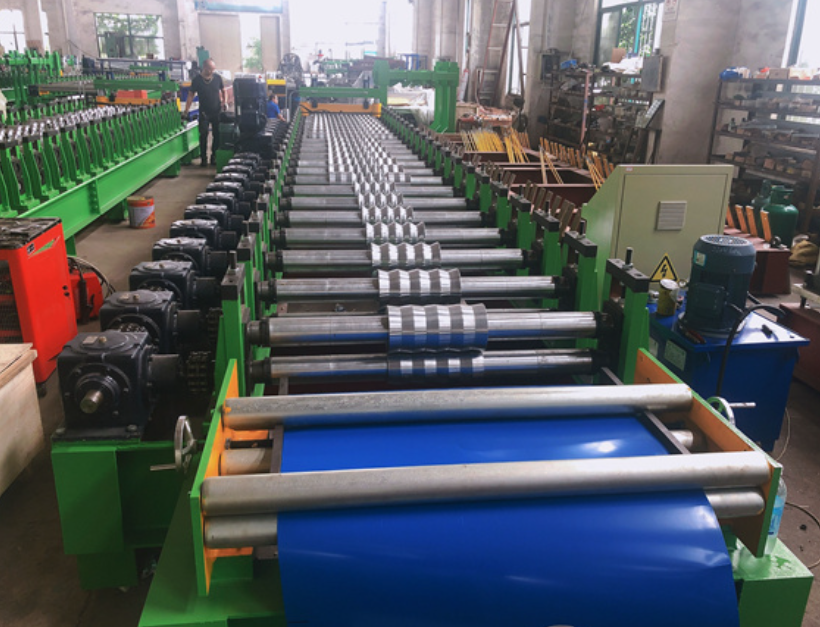

Corrugated Metal Roofing​ Roll Forming Machine

Price

Contact us for price

Condition

New

Location

UK

The Corrugated Metal Roofing Roll Forming Machine is a high-precision, fully-automated system built to manufacture corrugated roofing panels used widely across industrial, commercial, and residential sectors in the United Kingdom. Designed to meet the demanding requirements of roofing contractors, sheet metal fabricators, and construction companies throughout England, Wales, Scotland, and Ireland, this machine offers speed, durability, and adaptability.

Built with robust materials and the latest in roll forming technology, the machine is capable of running a variety of coil materials, including galvanized steel, galvalume, aluminum, and pre-painted steel, and can handle diverse gauges and widths. All machines are custom-built to meet your specific profile and project requirements, ensuring accurate forming, minimal waste, and consistent panel quality.

Machine Technical Specifications

• Machine Type: Corrugated Roofing Roll Forming Machine
• Production Speed: 10–20 meters per minute (adjustable)
• Material Thickness Range: 0.3 – 0.8 mm
• Material Width Range: 914 – 1250 mm (based on profile and configuration)
• Material Types: Galvanized steel, Galvalume, Aluminum, Pre-painted steel
• Material Yield Strength: Up to 550 MPa (80 ksi)
• Roller Material: High-grade steel (GCr15)
• Roller Surface Treatment: Hard chrome plated for wear resistance
• Number of Forming Stations: 16–24 stations (depending on profile)
• Roller Shaft Diameter: 70 mm
• Shaft Material: Solid steel (quenched and tempered)
• Main Drive Type: Chain or Gear-driven (based on machine configuration)
• Power (UK Standard): 380V / 50Hz / 3 Phase
• Motor Power: 5.5 kW – 11 kW (depending on configuration)
• Cutting Method: Hydraulic post-cutting system
• Blade Material: Cr12MoV, heat-treated for long service life

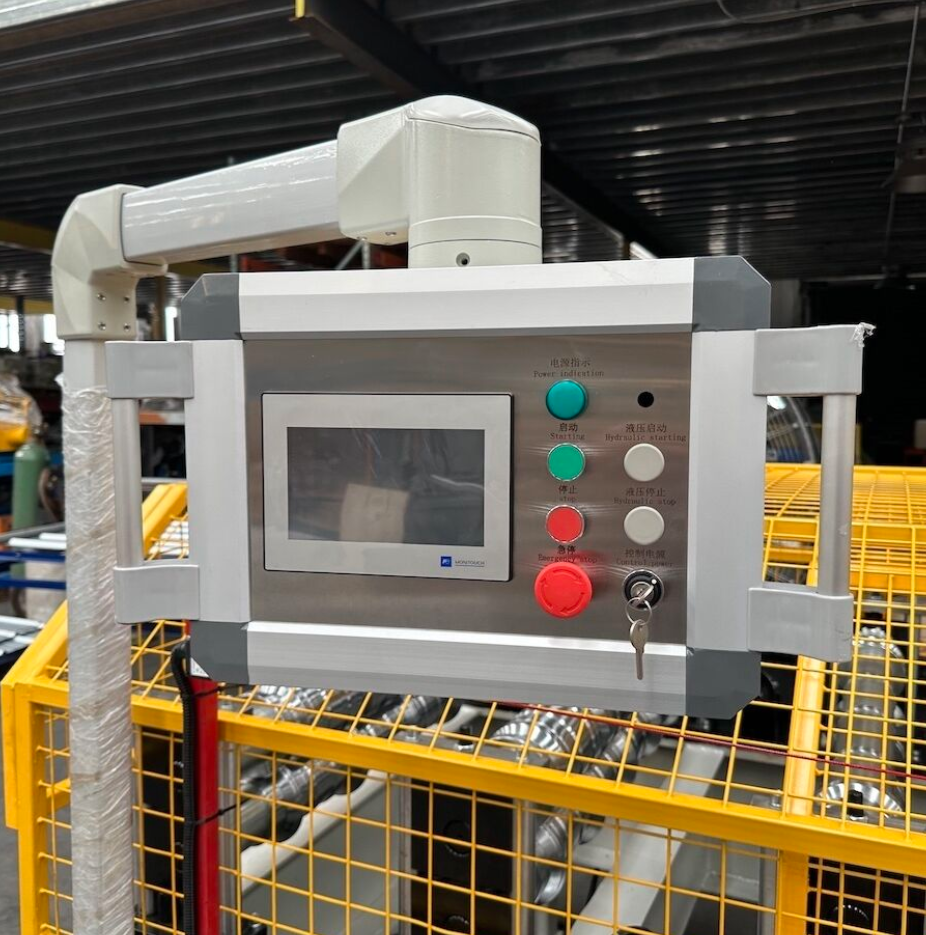

• Control Type: PLC control system with touch screen (English language interface)
• Operating Mode: Fully automatic with manual override
• De-coiling System: Manual or hydraulic decoiler (3–5 tons capacity optional)
• Punching/Notching System: Optional, integrated with forming line
• Machine Frame: Welded steel structure, CNC-machined base
• Thickness of Frame Steel: 20–30 mm
• Profile Shape: Corrugated (waveform or sinusoidal)
  • Q: Can the machine be customized for our profile?
    A: Yes. Each machine is engineered to match your specific profile drawing and material type.
• Profile Width and Depth: Customizable to your design (e.g., 18–25 mm corrugation depth)
• Length Tolerance: ±1.0 mm
• Safety Features:
  • Protective Covers/Guards
  • Emergency Stop Button
  • Overload Protection System

Machine Type & Capabilities

• Machine Type: Corrugated Roll Forming Machine

• Application: Manufacturing of corrugated roofing and wall cladding panels

• Capabilities:

  • Continuous high-speed production of roofing sheets

  • Precise panel forming for tight overlaps and weather resistance

  • Customizable for various corrugation depths and pitches

  • Optional punching/notching for ventilation or fixing holes

• Examples of Use:

  • Roofing panels for agricultural buildings in Wales

  • Cladding for industrial units in England

  • Canopies and shelters in Scotland

  • Residential sheds and barns across Ireland

Industries Served

This roll forming machine caters to a wide range of industries across the UK:

• Construction – for commercial, industrial, and domestic roofing

• Agriculture – for farm buildings, storage sheds, and barns

• Energy – roofing and cladding for solar farms and utility enclosures

• Manufacturing & Warehousing – wall cladding and roofing of factories and warehouses

• Infrastructure & Transport – shelters, sound barriers, and utility sheds

Material Compatibility

Corrugated roll forming machines are typically used with the following materials:

• Galvanized Steel (GI) – Most common; available in 0.4–0.7 mm gauges

• Pre-painted Steel (PPGI/PPGL) – Used for colored roofing applications

• Aluminum – Lightweight option for coastal or residential use

• Galvalume Steel – For higher corrosion resistance

Material Gauges: 26 – 22 gauge
Tensile Strength: Typically between 300 – 550 MPa (up to 80 ksi)

Delivery & Installation

• Location: Machines are delivered and supported across England, Wales, Scotland, and Ireland

• Custom-Built: All machines are made to order based on your profile, material, and performance needs

• Warranty: 1-Year warranty from dispatch date

• Support: Long-term maintenance, spare parts, and video or on-site installation support available

Frequently Asked Questions (FAQ)

Q: Can we request a custom panel profile for our local building requirements?
A: Absolutely. We specialize in custom-built machines tailored to your exact profile design, material type, and desired dimensions.

Q: What is the typical lead time for the machine?
A: Manufacturing takes between 30–60 days, depending on machine complexity. Shipping times will vary depending on your UK location and port access.

Q: Do you provide training or installation assistance?
A: Yes. We provide remote video guidance for installation and operation. On-site installation can also be arranged upon request.

Q: What type of maintenance does this machine require?
A: Regular lubrication of moving parts, roller cleaning, hydraulic oil changes, and electrical inspections are recommended. We provide full maintenance support and guidance.

Q: What kind of materials and gauges can we run on this machine?
A: You can process galvanized steel, aluminum, and color-coated steel in gauges from 0.3 mm to 0.8 mm, depending on your machine’s configuration.

Conclusion

If your business in the UK is involved in roofing panel manufacturing, construction, cladding, or agricultural infrastructure, the Corrugated Metal Roofing Roll Forming Machine is an investment in high-efficiency, low-maintenance, and precise production.

This machine is ideal for companies looking to expand production capability, improve panel quality, or meet project-specific corrugation needs. Built for long service life and backed by dedicated support, it ensures you stay competitive and productive across all sectors—from England to Northern Ireland.

For custom configurations, profile matching, or further technical information, reach out to our expert team. We’re here to ensure your machine is perfectly matched to your operation.
