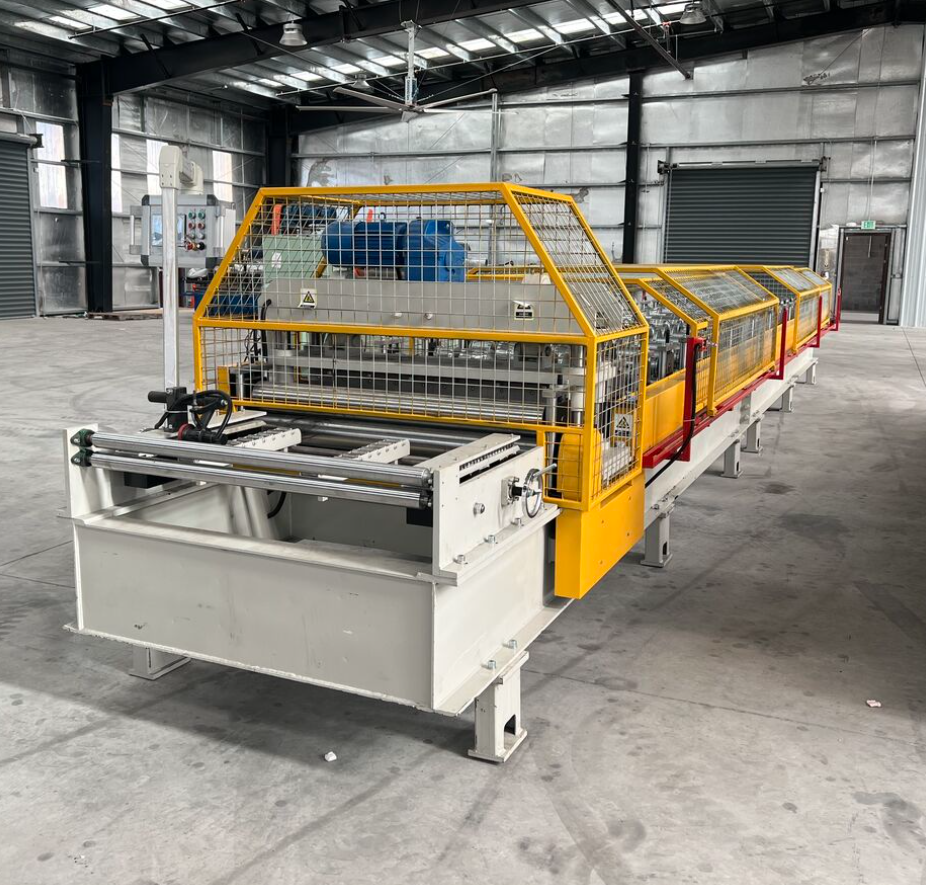

Box Profile Metal Roofing Sheet Roll Forming Machine

Price

Contact us for price

Condition

New

The Box Profile Metal Roofing Sheet Roll Forming Machine is an advanced, high-performance forming solution designed specifically for the UK market. Ideal for producing robust, weather-resistant box profile roofing sheets, this machine supports construction and cladding industries across England, Wales, Scotland, and Ireland.

Engineered for precision and built for longevity, this machine transforms galvanized steel, pre-painted steel, or other coated metals into high-quality box profile roofing sheets used in commercial, industrial, agricultural, and residential sectors. All machines are newly manufactured, tailored to the customer’s specific profile design and production capacity requirements, and delivered ready for setup anywhere in the UK.

With fast production speeds, a fully automated control system, and robust construction, this forming system is a must-have for UK-based sheet metal processing businesses looking to expand or modernize their roofing panel production capabilities.

Machine Technical Specifications

• Machine Type: Box Profile Roofing Sheet Roll Forming Machine

• Production Speed: 10–25 meters per minute (depending on profile and material)

• Material Thickness Range: 0.3 mm – 0.8 mm

• Material Width Range: 914 mm – 1250 mm (based on coil width and final profile)

• Material Types: Galvanized Steel (GI), Pre-Painted Steel (PPGI), Aluzinc, Aluminum

• Material Yield Strength: Up to 550 MPa (80 ksi)

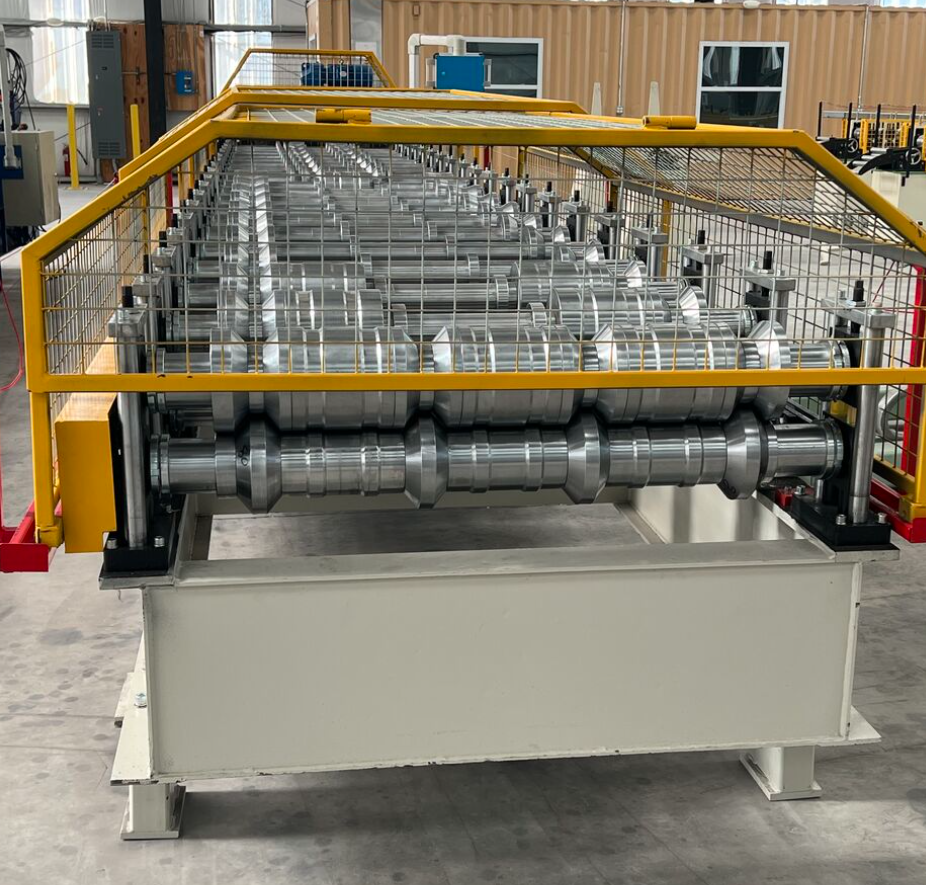

• Roller Material: High-grade 45# steel or GCr15

• Roller Surface Treatment: Hard chrome-plated for corrosion and wear resistance

• Number of Forming Stations: 12–20 stations (depending on final profile design)

• Roller Shaft Diameter: 70 mm – 90 mm

• Shaft Material: High-tensile forged steel (quenched and tempered)

• Main Drive Type: Chain or gearbox drive

• Power (UK Standard): 380V, 50Hz, 3 Phase

• Motor Power: 7.5 kW – 15 kW (depending on configuration)

• Cutting Method: Hydraulic cut-to-length system

• Blade Material: Cr12Mov, heat-treated and hardened

• Control Type: PLC (Programmable Logic Controller) – typically Siemens or Delta

• Operating Mode: Fully automatic with manual override

• De-coiling System: Manual or hydraulic decoiler (optional loading car)

• Punching/Notching System (if included): Hydraulic press with programmable control (optional)

• Machine Frame: Welded steel frame with high-strength reinforcement

• Thickness of Frame Steel: 16 mm – 20 mm

• Profile Shape: Box profile trapezoidal (customizable)

• Profile Width and Depth: Typically 1000 mm cover width; depth 30–40 mm (customizable)

• Length Tolerance: ±1.5 mm

• Safety Features:

  • Protective Covers and Guards

  • Emergency Stop Buttons

  • Overload Protection System

Industries Served

The Box Profile Roll Forming Machine supports a wide range of UK industries including:

• Construction – Roofing and cladding for commercial, industrial, and residential buildings.

• Agriculture – Roofing for barns, storage units, and animal housing structures.

• Infrastructure – Utility buildings, garages, temporary site shelters, and warehouses.

• Modular Buildings – Fast-build structures that require lightweight and high-strength panels.

• Renewables – Sheet roofing for solar panel supports and wind energy enclosures.

Machine Type & Capabilities

This forming machine is capable of high-speed continuous production of consistent, high-quality box profile roofing sheets. Its PLC-controlled operation allows seamless cut-to-length performance with minimal operator intervention.

Key Capabilities Include:

• Precision forming with low waste output

• Automatic shearing to required lengths

• Compatibility with high-strength steels and various coated materials

• Custom profile shaping to match UK roofing standards

• Reliable performance with minimal maintenance

Utilization Examples:

• Roofing Manufacturers in England use this machine to produce durable sheets for industrial warehouses.

• Cladding Specialists in Wales fabricate side panels for agricultural and livestock buildings.

• Contract Fabricators in Scotland rely on this for fast production of custom-length roofing materials.

• Panel Suppliers in Ireland use it to support large-scale housing and modular construction projects.

Questions & Answers

Q: Can the machine be customized for our profile?
A: Yes, each machine is custom-built to match your required box profile shape, dimensions, and material specifications.

Q: What is the typical lead time for manufacturing and shipping?
A: Production time is 30–60 days. Shipping duration depends on your exact location within the UK and any special delivery arrangements.

Q: What type of material is normally used with this machine?
A: This machine typically works with galvanized steel (GI), pre-painted galvanized steel (PPGI), Aluzinc, and aluminum. Standard thickness ranges between 0.3 mm – 0.8 mm, and typical material yield strength is up to 550 MPa (80 ksi).

Q: Is remote installation support available?
A: Yes, we provide full remote installation guidance via video support. On-site setup assistance is also available on request.

Q: Does the machine come with a warranty?
A: All machines come with a one-year warranty from the date of dispatch, and ongoing support for maintenance and spare parts is available.

Location and Delivery

This machine is custom-built to order and shipped to any location across:

• England (including London, Manchester, Birmingham, Leeds, and other industrial hubs)

• Wales (Cardiff, Swansea, Newport and surrounding areas)

• Scotland (Glasgow, Edinburgh, Aberdeen and more)

• Ireland (Dublin, Cork, Limerick and surrounding areas)

Conclusion

The Box Profile Metal Roofing Sheet Roll Forming Machine is a powerful and reliable solution for manufacturers across the UK seeking to produce high-quality roofing panels. With precision engineering, flexibility in design, and support from a dedicated team, this machine provides the performance and dependability needed to grow your production capabilities with confidence.

All machines are new and built to customer specifications. Delivery and setup are available throughout the United Kingdom and Ireland. One-year warranty and full after-sales service included.
